GlyphByte

Hand-drawn glyphs that carry bytes. One glyph is one byte.

draft v2 2026-09-25

Abstract

GlyphByte is a way to write a short byte string, typically the first bytes of a Nostr event id or public key, by hand on any surface, so that a phone camera can read it back. Each byte is one glyph: a square frame holding an upright icon for the first hex digit and up to four corner dots for the second. A row of glyphs is underlined, and a fat dot marks the start of the underline. Readers recover the bytes and, when unsure about a glyph, return several candidate readings rather than one wrong answer. A client then resolves the bytes on a relay that supports prefix queries.

Why

QR codes need a printer and read as noise to people. A GlyphByte row can be drawn with a marker on a wall, chalk on a sidewalk, or a path mown through a field, and a person can read it too: "star, star, moon, tree, x, fish". It carries enough bits to identify an event or a pubkey among everything on a relay, and an extra relay query costs nothing, so a reader may be uncertain and still be useful.

The byte

byte = icon << 4 | dots. The first hex digit names the icon; the second is the sum of the dots, reading clockwise from the top-left corner: 8, 4, 2, 1. Every byte has exactly one drawing and every drawing is exactly one byte. All 256 are in test-vectors.json under bytes and drawn in glyphs.svg.

The alphabet

Index is the first hex digit. Every icon is drawn upright, with one or two pen strokes.

The icons are pen strokes in a unit box, y down, upright, in glyphs.json, together with the frame geometry: the icon's size relative to the frame (icon_scale), where the dots sit (dot_offset, dot_radius). Readers are not expected to match these strokes literally; they define the intended drawing and are what reference implementations render and train from.

No two icons differ only by a rotation or a mirror image: people confuse those forms more than any other, and a sloppy hand turns them anyway. "Up" for the whole row comes from its underline (see Reading), so a photo taken sideways reads the same as one taken upright.

Drawing a glyph

1. Frame first. Draw a square. Frames should be about the same size across the row, and neighbouring frames should not touch: leave a gap of roughly a third of a frame.
2. Icon in the middle, upright, about half the frame's width, one or two strokes, touching nothing. Keep the box and the x small, well inside the frame: a big box reads as a second frame, and the x's arms point at the corner dots.
3. Corner dots. A dot is a filled blob about a sixth of the frame across, placed in the corner area between the icon and the frame. A dot must touch neither the frame nor the icon: a dot that touches a line becomes part of it and is lost.
4. Keep points pointy. The house's roof, the crown's points and the triangle's corners are the difference between those icons and a box or a band.

Drawing a row

1. Draw the glyphs left to right in byte order, each in its own frame, on one line.
2. Underline the whole row with one stroke, a little below the frames, extending past the first and last frame.
3. Start dot: a solid dot at the start end of the underline, about a quarter of a frame across. The underline tells a reader which way is up; the dot tells it where to start.

A row without an underline is still readable: its glyphs show which way is up. A reader MUST warn when it had to decide "up" from the glyphs alone, and SHOULD return the runner-up orientation's reading as a candidate when the glyphs do not agree clearly.

Recommended lengths for Nostr references: 6 bytes (48 bits) for an event id or pubkey prefix in ordinary use, 8 bytes for something meant to stay unambiguous for years, 4 bytes only where the relay is small. With N candidate objects on a relay the chance that a random one collides with a k-byte prefix is about N / 2^(8k): for N = 10^8, 4 bytes gives a 2% chance of a collision, 6 bytes about 4 x 10^-7, 8 bytes about 5 x 10^-12.

Reading

A reader takes a photo and returns byte sequences. The reference readers in this repository work like this, and a compatible reader MUST produce the same bytes for the same drawing:

1. Find the frames: closed squares of ink that contain ink, taken in any perspective. Look for them in the gray image and, in a colour photo, in the ink's colour difference from the surface around it: coloured chalk on concrete can be as bright as the concrete and differ only in hue.
2. Find the row: the frames that share a line and a smooth size trend.
3. Find the underline: a long stroke parallel to the row just outside it, and its fat end. "Up" is the side of the underline the frames are on. A photo is never mirrored, so reading runs a quarter turn clockwise from up; the dot confirms where the row starts.
4. Check "up" against the glyphs. Every icon except box, plus and x has a top, so the glyphs of a row vote on how the row is turned. When the vote clearly disagrees with the underline (a ruled line on lined paper, a paper edge), the glyphs win; when it is close, both readings are returned as candidates. Without an underline the glyphs alone decide.
5. Rectify each frame into an upright patch from its four corners, and classify the icon and each of the four corner dots.
6. Assemble bytes. Where a glyph is uncertain, keep the alternatives and return the most probable whole sequences, ranked, so the client can query all of them.
7. Tell the format. A reader SHOULD also read format 1 (below), so rows drawn before v2 keep working: read the same frames as format 1, and pick the format whose glyphs are better explained (see "Format 1"). Every returned sequence says which format it was read as.

Readers MUST NOT silently drop a glyph they could not read; a missing byte shifts every later byte. They SHOULD report how many frames they found and any assumption they made.

There is no checksum by design. A wrong candidate simply matches nothing on the relay, and the person holding the phone can see the alternatives.

Resolving on Nostr

The bytes are a prefix. A client queries a relay with the prefix in the ids list and, for pubkeys, in the authors list, for example:

["REQ", "gb", {"ids": ["e8ed3798c6ff"]}, {"authors": ["e8ed3798c6ff"], "kinds": [0]}]

Prefix matching in ids and authors was part of the first NIP-01 and was later removed from the text; some relay software still honours it. As of 2026-09, grain honours prefixes of any length in both fields; strfry answers CLOSED with "filter item too small"; khatru returns nothing. A client SHOULD test a relay once by fetching one event and asking for it again by an 8-character prefix, and tell the user when a relay cannot answer prefix queries.

All candidate readings can go in one REQ. Results are shown with the author's profile, and the person confirms which one they meant. A prefix is not an identity: a client MUST treat the resolved full id or pubkey as the reference, never the drawn bytes.

Encoding a NIP-19 entity: npub and nprofile encode the pubkey, note and nevent the event id. An naddr has no event id; a row for it encodes the author's pubkey and the reader's user picks the event by kind and d tag among the author's addressable events.

Test vectors

test-vectors.json holds:

• bytes: all 256 bytes with the icon, the dots and a one-line description.
• sequences: hex strings with their glyph descriptions and a rendered reference row (vectors/row-<hex>.png), drawn cleanly by the reference renderer.
• photos: real photographs of hand-drawn rows with their format and the bytes they carry. Both are format 1 rows drawn with a marker in a notebook; format 2 photographs are added as people draw and share them.

A conforming encoder MUST reproduce bytes and the descriptions in sequences. A conforming reader SHOULD return the expected bytes of every entry in photos as its top reading, and MUST include them among its candidates; a reader that reads format 1 MUST report each photo's format.

Reference implementations

• Python package glyphbyte: encoder, renderer, reader, relay lookup, training of the classifier from synthetic data. glyphbyte encode HEX renders a row (--format 1 for the first alphabet); glyphbyte decode PHOTO reads one in either format.
• JavaScript, in napplet/src: the same reader and encoder with no dependencies, bundled into a single-file napplet (NIP-5D) that runs on the phone and queries a relay.

Security considerations

Anyone can draw anything. A GlyphByte row is a pointer, not a proof: clients show what the prefix resolves to, and the person decides whether that is what they were looking for. A short prefix on a large relay may resolve to several objects; clients MUST show all of them. Readers process photos on the device; nothing in this specification requires sending an image anywhere.

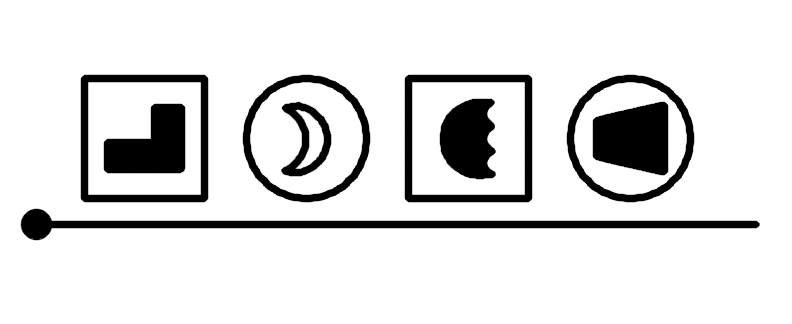

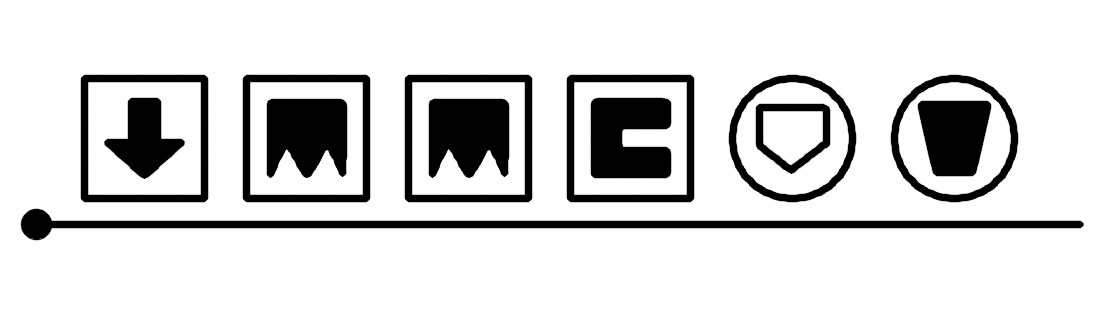

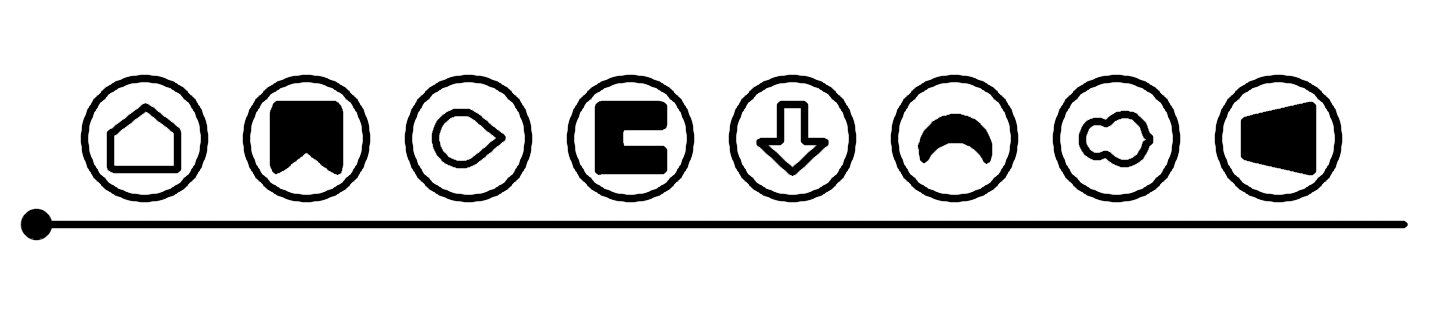

Format 1

The first alphabet (v0.1, 2026-09-22) is still read and can still be drawn. Its byte is

byte = symbol << 4 | rotation << 2 | fill << 1 | frame. The pictograms are polygons in glyphs-v1.json (unit box, y down, rotation 0), drawn at 0.62 of a square frame or 0.56 of a circle's diameter; glyphs-v1.svg is the sheet. Rows use the same underline and start dot.

Reading both formats. A reader finds the candidate frames once and reads format 2 first. A format 1 reading can only win by beating format 2 by 0.5 nats per glyph, so it is tried only when format 2's summed log probability of every glyph's most likely byte, after its orientation vote, is below -0.5 per glyph. Then the row is chosen again, format 1's model taking a second look at the candidates format 2 turned down, and read as format 1 (a circle frame cut through its fitted ellipse). Format 1 is chosen when its score per glyph beats format 2's by more than 0.5; within 0.5 of that threshold, the other format's readings are also returned as candidates, after the chosen format's best reading. On the reference readers' synthetic benchmark (2026-09-26) this picks the right format for 91% of format 1 rows and 96-97% of format 2 rows, and the wrong picks fall on rows that do not read correctly anyway. Format 1 glyphs are drawn in every rotation and cannot vote on "up": with no start dot, the row turned 180 degrees (reversed, each rotation plus two) is returned as a candidate.

Changes from v0.1

v0.1 (2026-09-22) spent its eight bits on 16 pictograms, 4 rotations, outline or filled, and a square or circle frame. v2 keeps one byte per glyph and replaces the parts people found hard to draw:

The design follows published evidence on what people draw easily (lines, circles, crosses and squares are copied by age 4, diagonals and diamonds later), on what they confuse (mirror and rotated forms), on counting (up to four items are seen at a glance), and on markers that people draw by hand (blobs that never touch their region's edge). The research notes and the comparison are in research/v2/ in the repository.

License

This specification, the GlyphByte alphabet and its canonical shapes, the sheet, the test vectors and the reference implementations are licensed under the Creative Commons Attribution-ShareAlike 4.0 International License (LICENSE in the repository, https://creativecommons.org/licenses/by-sa/4.0/).
